Long-Term Behavior of Wood-Concrete Composite Floor/Deck Systems with Shear Key Connection Detail

by M. Fragiacomo; R. M. Gutkowski; J. Balogh; and R. S. Fast

Abstract:
The paper investigates the long-term behavior of wood-concrete composite beams with notched connection detail. The experimental program comprised the characterization of the component materials
wood, concrete, and connection detail and long-term tests on beam specimens. The beam specimens were monitored during the construction process, and for an overall period of 133 days after the application of the service load. The experimental results have then been extended to the entire service life of the structure using a
one-dimensional finite-element model. It was found that the increase in moisture content due to the bleeding of the fresh concrete is not an issue for the durability of the wood deck, and the type of construction
shored or unshored does not significantly affect the structural performance. The rheological phenomena experienced by the component materials lead to quite large deflections over the entire service life, whereas the variation in stress is not significant. If the limitation of the deflection is required for serviceability considerations, the use of concrete with reduced shrinkage and the precambering of the wood deck are to be recommended. A simplified approach based on closed form solutions for composite beams with smeared flexible connectors is finally proposed for the prediction of the long-term
behavior.

Learn more about Long-Term Behavior of Wood-Concrete Composite Floor/Deck Systems with Shear Key Connection Detail, you can download here

Deterioration of Strength of RC Beams due to Corrosion and Its Influence on Beam Reliability

by Dimitri V. Val

Abstract: This paper examines the effect of corrosion of reinforcing steel on flexural and shear strength, and subsequently on reliability, of reinforced concrete beams. Two types of corrosion—general and pitting—are considered, with particular emphasis on the influence of pitting corrosion of stirrups on the performance of beams in shear. Variability of pitting corrosion along a beam is considered and the possibility of failure at a number of the beam cross sections is taken into account. Probabilities of failure are evaluated using Monte Carlo simulation. Uncertainties in material properties, geometry, loads, and corrosion modeling are taken into account. Results show that corrosion of stirrups, especially pitting corrosion, has a significant influence on the reliability of reinforced concrete beams.

Learn more about Deterioration of Strength of RC Beams due to Corrosion and Its Influence on Beam Reliability, you can download here

Confinement Model of Concrete with Externally Bonded FRP Jackets or Posttensioned FRP Shells

by Chris P. Pantelides, M.ASCE; and Zihan Yan

Abstract: A design-oriented confinement model for square and rectangular columns confined with bonded fiber-reinforced polymer
FRP jackets, and shape-modified square and rectangular sections confined with posttensioned FRP shells is developed. The proposed design model for FRP-confined concrete columns is based on the bilinear four-parameter formulation by Richard and Abbott. The axial compressive strength of FRP-confined concrete is obtained using concrete plasticity theory based on the five parameter Willam and Warnke model. The ultimate axial strain of FRP-confined concrete is obtained from a strain-based approach depending on either passive or active confinement; the ultimate axial strain is based on the concepts of secant concrete modulus and strain dependent stiffness established by Pantazopoulou and Mills. Comparisons of the proposed stress-strain model with uniaxial compression experiments for columns with bonded FRP jackets or posttensioned FRP shells, performed by the writers and other researchers, show satisfactory
agreement for the entire stress-strain curve.

Learn more about Confinement Model of Concrete with Externally Bonded FRP Jackets or Posttensioned FRP Shells, you can download here

Static Strength of Thick-Walled CHS X-Joints Subjected to Brace Moment Loadings

by X. D. Qian; Y. S. Choo; J. Y. R. Liew; and J. Wardenier

Abstract:
This paper presents results from a systematic finite-element
FE study on the static strength of moment loaded thick-walled circular hollow section
CHS X-joints, and compares the results with CIDECT and ISO/CD 13819-2 recommendations. For thick-walled joints subjected to brace out-of-plane bending, the CIDECT formulation excludes the
dependency in the joint strength, which is different from the ISO equation and the present FE observations. The current study compares the different load paths mobilized in the X-joint under various brace loading conditions, through a detailed three-dimensional finite-element study. The numerical results reveal the significance of the joint geometric parameters and the tensile chord stress effect on the ultimate joint strength. Based on the present detailed study, a new chord stress function which incorporates the geometric dependency and the tensile chord stress effect is proposed.

Learn more about Static Strength of Thick-Walled CHS X-Joints Subjected to Brace Moment Loadings, you can download here

Determination of Composite Slab Strength Using a New Elemental Test Method

by Redzuan Abdullah and W. Samuel Easterling, F.ASCE

Abstract:
Composite slabs utilizing cold-formed profiled steel decks are commonly used for floor systems in steel framed buildings. The behavior and strength of composite slabs are normally controlled by the horizontal shear bond between the steel deck and the concrete. The strength of the horizontal shear bond depends on many factors and it is not possible to provide representative design values that can be applied to all slab conditions a priori. Thus, present design standards require that the design parameters be obtained from full-size bending tests, which are typically one or two deck panels wide and a single span. However, because these full-size tests can be expensive and time consuming, smaller size specimens, referred to as elemental tests, are desirable and have been the subject of a great deal of research. Details for a new elemental test method for composite slab specimens under bending are presented. Test results consisting of maximum applied load, end slips, and failure modes are presented and compared with the results of full-size specimens with similar end details, spans, etc. It is shown that the performance of the elemental test developed in this study is in good agreement with the performance of the full-size specimens. Application of test data to current design specifications is also presented.

Learn more about Determination of Composite Slab Strength Using a New Elemental Test Method, you can download here

Vibration-Based Detection of Small-Scale Damage on a Bridge Deck

by Zhengjie Zhou; Leon D. Wegner; and Bruce F. Sparling

Abstract:
Vibration-based damage detection
VBDD methods use damage-induced changes to the dynamic properties of a structure to detect, locate, and sometimes quantify the extent of damage. This paper describes a laboratory-based experimental and finite element analysis study conducted to evaluate the ability of five different VBDD methods to detect and localize low levels of damage on the deck slab of a two-girder, simply supported bridge, with a focus on using a small number of sensors and only the fundamental mode of vibration. It is demonstrated that damage can be detected and localized longitudinally within a distance equivalent to the spacing between measurement points using data for only the fundamental mode shape before and after damage, defined by as few as five evenly spaced measurement points. The localization resolution declines by approximately 50% near supports. Increasing the number of measurement points improves the localization resolution of the techniques, although not always in proportion to the resulting decrease in measurement point spacing. Incorporating data from two additional modes was not found to significantly improve the localization performance.

Learn more about Vibration-Based Detection of Small-Scale Damage on a Bridge Deck, you can download here

Possibilistic Approach for Damage Detection in Structural Health Monitoring

by E. Altunok; M. M. Reda Taha, M.ASCE; and T. J. Ross, F.ASCE

Abstract:
This article suggests the process of structural health monitoring
SHM in the context of a nonstatistical damage detection paradigm. We particularly focus on applying the theory of possibility to the damage detection problem. The basic idea behind the proposed approach is that the application of possibility theory does not require probabilistic knowledge or assumptions on the damage feature and thus encompasses aleatoric and epistemic types of uncertainties. The approach is not damage feature dependent and thus is generic for use in many SHM systems. Additionally, two new damage metrics are introduced. These metrics extract information concerning damage evidence from observations performed at unknown health states of structures. Damage detection with the aid of the proposed approach is demonstrated by means of a case study.

Learn more about Possibilistic Approach for Damage Detection in Structural Health Monitoring, you can download here

Assessment of Improved Nonlinear Static Procedures in FEMA-440

by Sinan Akkar and Asli Metin

Abstract:
Nonlinear static procedures
NSPs presented in the FEMA-440 document are evaluated for nondegrading three- to nine-story reinforced concrete moment-resisting frame systems. Evaluations are based on peak single-degree-of-freedom displacement, peak roof, and interstory drifts estimations. A total of 78 soil site records and 24 buildings with fundamental periods varying between 0.3 s–1.3 s are used in 2,832 linear and nonlinear response-history analyses to derive the descriptive statistics. The moment magnitude of the ground motions varies between 5.7 and 7.6. All records are within 23 km of the causative fault representing near-fault ground motions with and without pulse signals. The statistics presented suggest that lateral loading patterns used in pushover analysis to idealize the building systems play a role in the accuracy of NSPs investigated. Both procedures yield fairly good deformation demand estimations on the median. Displacement coefficient method
DCM tends to overestimate the global deformation demands with respect to the capacity spectrum method
CSM. The conservative deformation demand estimations of DCM are correlated with the normalized lateral strength ratio, R. The CSM tends to overestimate the deformation demands for the increasing displacement ductility.

Learn more about Assessment of Improved Nonlinear Static Procedures in FEMA-440, you can download here

Vertical Stiffness of Elastomeric and Lead–Rubber Seismic Isolation Bearings

by Gordon P. Warn; Andrew S. Whittaker, M.ASCE; and Michael C. Constantinou, M.ASCE

Abstract: An experimental study investigating the influence of lateral displacement on the vertical stiffness of elastomeric and lead–rubber seismic isolation bearings is summarized. Two identically constructed low-damping rubber and lead–rubber seismic isolation bearings were subjected to a series of tests with varying levels of combined lateral displacement and axial
compressive loading to study this relationship. The results of these tests showed the vertical stiffness decreases with increasing lateral displacement for each bearing tested. Additionally, the vertical stiffness data are used to evaluate four formulations for the estimation of the vertical stiffness as a function of the lateral displacement. From this comparison, two formulations, one based on the Koh–Kelly two-spring model and the other on a piecewise linear relationship, showed good agreement with the experimental data over the wide range of lateral displacements considered in this study.

Learn more about Vertical Stiffness of Elastomeric and Lead–Rubber Seismic Isolation Bearings, you can download here

Testing of a Full-Scale Unreinforced Masonry Building Following Seismic Strengthening

by Franklin L. Moon; Tianyi Yi; Roberto T. Leon; and Lawrence F. Kahn

Abstract:
To investigate the effectiveness of several seismic strengthening techniques, a full-scale unreinforced masonry
URM structure was subjected to slowly applied lateral load reversals after the application of fiber reinforced plastic overlays, near surface mounted rods, and vertical posttensioning. Results showed that all techniques were effective for improving the seismic resistance of the previously tested URM building structure. Each system either increased the lateral in-plane strength and/or provided continuity of pier and spandrel elements over increased lateral displacements. In addition, the response of the test structure
overall height to base ratio of approximately one showed that global issues such as flange effects, the effects of overturning moment, and global rocking can be substantial and must be considered.

Learn more about Testing of a Full-Scale Unreinforced Masonry Building Following Seismic Strengthening, you can download here

Experimental Evaluation of a Large-Scale Buckling-Restrained Braced Frame

by Larry A. Fahnestock, P.E., M.ASCE; James M. Ricles, P.E., M.ASCE; and Richard Sause, P.E., M.ASCE

Abstract:
As buckling-restrained braced frames
BRBFs have been used increasingly in the United States, the need for knowledge about BRBF behavior has grown. In particular, large-scale experimental evaluations of BRBFs are necessary to demonstrate the seismic performance of the system. Although tests of buckling-restrained braces
BRBs have demonstrated their ability to withstand significant ductility demands, large-scale BRBF tests have exhibited poor performance at story drifts between 0.02 and 0.025 rad. These tests indicate that the large stiffness of the typical beam-column-brace connection detail leads to large flexural demands that cause undesirable failure modes. As part of a research program composed of numerical and experimental simulations, a large-scale BRBF with improved connection details was tested at the ATLSS Center, Lehigh University. During multiple earthquake simulations, which were conducted using a hybrid pseudodynamic testing method, the test frame sustained story drifts of close to 0.05 rad and BRB maximum ductility demands of
over 25 with minimal damage and no stiffness or strength degradation. The testing program demonstrated that a properly detailed BRBF can withstand severe seismic input and maintain its full load-carrying capacity.

Learn more about Evaluation of a Large-Scale Buckling-Restrained Braced Frame, you can download here

Seismic Response and Performance of Buckling-Restrained Braced Frames

by Larry A. Fahnestock, P.E., M.ASCE; Richard Sause, P.E., M.ASCE; and James M. Ricles, P.E., M.ASCE

Abstract:
As the use of buckling-restrained braced frames
BRBFs has increased in the United States, the need has grown for knowledge about member and system behavior under seismic loads and for implementing this knowledge into design provisions. In particular, methods for designing BRBFs and predicting seismic response require validation. To address this need, along with the need for experiments demonstrating system-level BRBF performance, a research program composed of numerical and large-scale experimental simulations was initiated at the ATLSS Center, Lehigh University. This paper describes the nonlinear dynamic analyses that were conducted as part of this research program. Numerical simulations of BRBF response were conducted using ground motion records scaled
to two seismic hazard levels. The performance of the prototype BRBF was acceptable and performance objectives were met in terms of structural damage. It is shown that the currently accepted deflection amplification factor underestimates mean inelastic lateral displacements under design-level earthquakes and the system overstrength factor may be unconservative. The current method for predicting BRB maximum ductility demands is also shown to be unconservative and a more rigorous method for predicting BRB maximum ductility demands is provided.

Learn more about Seismic Response and Performance of Buckling-Restrained Braced Frames, you can download here

PILE DESIGN AND CONSTRUCTION PRACTICE

Piles are columnar elements in a foundation which have the function of transferring load from the superstructure through weak compressible strata or through water, onto stiffer or more compact and less compressible soils or onto rock. They may be required to carry uplift loads when used to support tall structures subjected to overturning forces from winds or waves.

Piles used in marine structures are subjected to lateral loads from the impact of berthing ships and from waves. Combinations of vertical and horizontal loads are carried where piles are used to support retaining walls, bridge piers and abutments, and machinery foundations.

Learn more about PILE DESIGN AND CONSTRUCTION PRACTICE, you can download here

THE MODIFIED COMPRESSION-FIED THEORY FOR REINFORCED CONCRETE ELEMENT SUBJECTED TO SHEAR

ACI Journal
Title no. 83-22
by Frank J. Vecchio and Michael P. Collins

Abstract
An analytical model is presented that is capable of predicing the load-deformation response of reinforced element subjected to in plane shear and normal stress. In the model, cracked concrete is treated as a new material with its own stress-strain characteristics. Equilibrium, compatibility, and stress-strain relationships are formulated in term of average stress and average strain. Consideration is also given to local stress conditional at crack location.

Learn more about THE MODIFIED COMPRESSION-FIED THEORY FOR REINFORCED CONCRETE ELEMENT SUBJECTED TO SHEAR, you can download here

HANDBOOK OF CIVIL ENGINEERING CALCULATION

This handbook presents a comprehensive collection of civil engineering calculation procedures useful to practicing civil engineers, surveyors, structural designers, drafters, candidates for professional engineering licenses, and students. Engineers in other disciplines—mechanical, electrical, chemical, environmental, etc.—will also find this handbook useful for making occasional calculations outside their normal field of specialty.

Each calculation procedure presented in this handbook gives numbered steps for performing the calculation, along with a numerical example illustrating the important concepts in the procedure. Many procedures include "Related Calculations" comments which expand the application of the computation method presented. All calculation procedures in this handbook use both the USCS (United States Customary System) and the SI (System International) for numerical units. Hence, the calculation procedures presented are useful to engineers throughout the world.

Major calculation procedures presented in this handbook include stress and strain, flexural analysis, deflection of beams, statically indeterminate structures, steel beams and olumns, riveted and welded connections, composite members, plate girders, load and resistance factor design method (LRFD) for structural steel design, plastic design of steel structures, reinforced and prestressed concrete engineering and design, surveying, route design, highway bridges, timber engineering, soil mechanics, fluid mechanics, pumps, piping, water supply and water treatment, wastewater treatment and disposal, hydro power, and engineering economics.

Each section of this handbook is designed to furnish comprehensive coverage of the topics in it. Where there are major subtopics within a section, the section is divided into parts to permit in-depth coverage of each subtopic. Civil engineers design buildings, bridges, highways, airports, water supply, sewage treatment, and a variety of other key structures and facilities throughout the world. Because of the importance of such structures and facilities to the civilized world, civil engineers have long needed a handbook which would simplify and speed their daily design calculations. This handbook provides an answer to that need.

While there are computer programs that help the civil engineer with a variety of engineering calculations, such programs are highly specialized and do not have the breadth of coverage this handbook provides. Further, such computer programs are usually expensive. Because of their high cost, these computer programs can be justified only when a civil engineer makes a number of repetitive calculations on almost a daily basis. In contrast, this handbook can be used in the office, field, drafting room, or laboratory. It provides industry-wide coverage in a convenient and affordable package. As such, this handbook fills a long-existing need felt by civil engineers worldwide.

In contrast, civil engineers using civil-engineering computer programs often find dataentry time requirements are excessive for quick one-off-type calculations. When one-offtype calculations are needed, most civil engineers today turn to their electronic calculator, desktop or laptop computer and perform the necessary steps to obtain the solution desired. But where repetitive calculations are required, a purchased computer program will save time and energy in the usual medium-size or large civil-engineering design office. Small civil-engineering offices generally resort to manual calculation for even repetitive procedures because the investment for one or more major calculation programs is difficult to justify in economic terms.

Even when purchased computer programs are extensively used, careful civil engineers still insist on manually checking results on a random basis to be certain the program is accurate. This checking can be speeded by any of the calculation procedures given in this handbook. Many civil engineers remark to the author that they feel safer, knowing they have manually verified the computer results on a spot-check basis. With liability for civilengineering designs extending beyond the lifetime of the designer, every civil engineer seeks the "security blanket" provided by manual verification of the results furnished by a computer program run on a desktop, laptop, or workstation computer. This handbook gives the tools needed for manual verification of some 2,000 civil-engineering calculation procedures.

Each section in this handbook is written by one or more experienced professional engineers who is a specialist in the field covered. The contributors draw on their wide experience in their field to give each calculation procedure an in-depth coverage of its topic. So the person using the procedure gets step-by-step instructions for making the calculation plus background information on the subject which is the topic of the procedure. And since the handbook is designed for worldwide use, both earlier, and more modern topics, are covered. For example, the handbook includes concise coverage of riveted girders, columns, and connections. While today's civil engineer may say that riveted construction is a method long past its prime, there are millions of existing structures worldwide that were built using rivets. So when a civil engineer is called on to expand, rehabilitate, or tear down such a structure, he or she must be able to analyze the riveted portions of the structure. This handbook provides that capability in a convenient and concise form.

In the realm of modern design techniques, the load and resistance factor method (LRFD) is covered with more than ten calculation procedures showing its use in various design situations. The LRFD method is ultimately expected to replace the well-known and widely used allowable stress design (ASD) method for structural steel building frameworks. In today's design world many civil engineers are learning the advantages of the LRFD method and growing to prefer it over the ASD method.

Also included in this handbook is a comprehensive section titled "How to Use This Handbook." It details the variety of ways a civil engineer can use this handbook in his or her daily engineering work. Included as part of this section are steps showing the civil engineer how to construct a private list of SI conversion factors for the specific work the engineer specializes in.

The step-by-step practical and applied calculation procedures in this handbook are arranged so they can be followed by anyone with an engineering or scientific background. Each worked-out procedure presents fully explained and illustrated steps for solving similar problems in civil-engineering design, research, field, academic, or license-examination situations. For any applied problem, all the civil engineer need do is place his or her calculation sheets alongside this handbook and follow the step-by-step procedure line for line to obtain the desired solution for the actual real-life problem. By following the calculation procedures in this handbook, the civil engineer, scientist, or technician will obtain accurate results in minimum time with least effort. And the approaches and solutions presented are modern throughout.

The editor hopes this handbook is helpful to civil engineers worldwide. If the handbook user finds procedures which belong in the book but have been left out, he urges the engineer to send the title of the procedure to him, in care of the publisher. If the procedure is useful, the editor will ask for the entire text. And if the text is publishable, the editor will include the calculation procedure in the next edition of the handbook. Full credit will be given to the person sending the procedure to the editor. And if users find any errors in the handbook, the editor will be grateful for having these called to his attention. Such errors will be corrected in the next printing of the handbook. In closing, the editor hopes that civil engineers worldwide find this handbook helpful in their daily work.

Learn more about HANDBOOK OF CIVIL ENGINEERING CALCULATION, you can download here

CONCRETE FORMWORK SYSTEM

Formwork development has paralleled the growth of concrete construction throughout the 20th century. In the last several decades formwork technology has become increasingly important in reducing overall costs, since the structural frame constitutes a large portion of the cost of a formwork system.

This book has three objectives. The first is to provide technical descriptions and evaluations of ten formwork systems that are currently used in concrete construction. The second is to serve as a tool to assist contractors in selecting the optimal formwork system. The third is to present the design criteria for conventional formwork for slabs and walls using the stress and the stress modification factors provided by the National Design Specifications (NDS) and the American Plywood Association (APA).

Following a comprehensive introductory chapter, five types of formwork systems for concrete slabs are presented in chapters 2–5. These are conventional wood forms, conventional metal forms, flying forms, the column-mounted shoring system, and tunnel forms. The last four chapters describe five types of formwork systems for concrete columns and walls: conventional wood forms, ganged forms, jump forms, slip forms, and self-raising forms. Particular consideration is given to topics such as system components, typical work cycles, productivity, and the advantages and disadvantages associated with the use of various systems.

The selection of a formwork system is a critical decision with very serious implications. Due consideration must be given to such factors as the system’s productivity, safety, durability, and many other variables that may be specific to the site or job at hand. Chapters 5 and 9 provide a comparative analysis of forming systems for horizontal and vertical concrete work to facilitate the selection of the optimal forming system.

Existing formwork design literature is inconsistent with the design criteria for wood provided by the NDS and the APA. Chapters 3 and 7 provide a systematic approach for formwork design using the criteria of the American Concrete Institute committee 347-94, the NDS, and the APA. For international readers, metric conversion is provided in the Appendix.

This book is directed mainly toward construction management, construction engineering and management students, and concrete contractors. It may also serve as a useful text for a graduate course on concrete formwork, and should be useful for practicing engineers, architects,
and researchers.

Learn more about CONCRETE FORMWORK SYSTEM, you can download here

BRIDGE ENGINEERING SUBSTRUCTURE DESIGN

The Bridge Engineering Handbook is a unique, comprehensive, and the state-of-the-art reference work and resource book covering the major areas of bridge engineering with the theme “bridge to the 21st century.” It has been written with practicing bridge and structural engineers in mind. The ideal readers will be M.S.-level structural and bridge engineers with a need for a single reference source to keep abreast of new developments and the state-of-the-practice, as well as to review standard practices.

The areas of bridge engineering include planning, analysis and design, construction, maintenance, and rehabilitation. To provide engineers a well-organized and user-friendly, easy to follow resource, the Handbook is divided into four volumes: I, Superstructure Design II, Substructure Design III, Seismic Design, and IV, Construction and Maintenance.

Volume II: Substructure Design addresses the various substructure components: bearings, piers and columns, towers, abutments and retaining structures, geotechnical considerations, footing and foundations, vessel collisions, and bridge hydraulics.

The Handbook stresses professional applications and practical solutions. Emphasis has been placed on ready-to-use materials. It contains many formulas and tables that give immediate answers to questions arising from practical work. It describes the basic concepts and assumptions omitting the derivations of formulas and theories. It covers traditional and new, innovative practices. An overview of the structure, organization, and content of the book can be seen by examining the table of contents presented at the beginning of the book while an in-depth view of a particular subject can be seen by examining the individual table of contents preceding each chapter. References at the end of each chapter can be consulted for more detailed studies.

The chapters have been written by many internationally known authors from different countries covering bridge engineering practices and research and development in North America, Europe, and the Pacific Rim. This Handbook may provide a glimpse of a rapid global economy trend in recent years toward international outsourcing of practice and competition in all dimensions of engineering. In general, the Handbook is aimed toward the needs of practicing engineers, but materials may be reorganized to accommodate undergraduate and graduate level bridge courses. The book may also be used as a survey of the practice of bridge engineering around the world.

The authors acknowledge with thanks the comments, suggestions, and recommendations during the development of the Handbook, by Fritz Leonhardt, Professor Emeritus, Stuttgart University, Germany; Shouji Toma, Professor, Horrai-Gakuen University, Japan; Gerard F. Fox, Consulting Engineer; Jackson L. Kurkee, Consulting Engineer; Michael J. Abrahams, Senior Vice President; Parsons Brinckerhoff Quade & Douglas, Inc.; Ben C. Gerwick Jr., Professor Emeritus, University of California at Berkeley; Gregory F. Fenves, Professor, University of California at Berkeley; John M. Kulicki, President and Chief Engineer, Modjeski and Masters; James Chai, Supervising Transportation Engineer, California Department of Transportation; Jinron Wang, Senior Bridge Engineer, California Department of Transportation; and David W. Liu, Principal, Imbsen & Associates, Inc.

Learn more about BRIDGE ENGINEERING SUBSTRUCTURE DESIGN, you can download here

BASIC TOOLS OF REINFORCED CONCRETE BEAM DESIGN

ACI Journal
Title no. 82-4
by Peter Marti

Abstract
The application of consistent equilibrium and ultimate strength consideration to the design and detailing of reinforced concrete beams is described. Basic tools insclude struts and tie, nodes, fans, and arches. Comparisons with experiments on a shearwall coupling beam and on a deep beam and three design examples illustrate the practical application of these tools.

Learn more about BASIC TOOLS OF REINFORCED CONCRETE BEAM DESIGN, you can download here

STRUCTURAL DETAILS IN CONCRETE

by M.Y.H. Bangash

Contents :
I. General Requirements for Structural Detailing in Concrete
II. Reinforced Concrete Beams and Slabs
III. Stairs and Staircases
IV. Columns, Frames and Wall
V. Prestress Concrete
VI. Composite Construction, Precast Concrete Elements, Joint, and Connection
VII. Concrete Foundation and Earth-Retaining Structures
VIII. Special Stuctures

Learn more about STRUCTURAL DETAILS IN CONCRETE, you can download here

CORRELATION OF SITE CONDITION - BUILDINGS DAMAGES – AND GROUND RUPTURE OF THE 27 MAY 2006 YOGYAKARTA EARTHQUAKE – CENTER JAVA

The 27 May 2006 earthquake produced a strike-slip ground rupture about ± 80 Km. long. It stretches along general N 220-245E direction from Desa Parangtritis – Distric Kretek- Kabupaten Bantul to Desa Prajinan, Distric Josonalan, Kabupaten Klaten. The sense of horizontal movement is left-lateral. Its epicenter lies within “the District Saden area” (?), Kabupaten Bantul and registered a magnitude of 6.3 (Ms) on the open ended Richter scale. The ground rupture was responsible for part of the damage inflicted by the earthquake. Hardest hit by rupturing are the Kampung Sengir, Piyungan, Srimartani, Derjo, Pathuk, Taji, Prambanan District. Many roads and one bridge were also cracked by the ground rupturing. Vibration triggered landslides and liquefaction and settling. Vibration was widely felt and its intensity varied with local ground conditions. Landslides affected Sengir. Liquefaction and settling damaged mostly the river deposits (flood plain) areas in and near Taji, Prajinan and Srimartani.

Post earthquake study of the ground ruptures provides additional insights into the possibilities that might be expected in case the Melange Cretaceous-Tertiary Fault (Kertapati, 1999) and Opak Fault or other faults move again. Future activities of similar magnitudes along the ground rupture will most probably follow the same trace. Structural controls that affected rupture propagation and arrest might provide us clues as to the size of the next earthquake and enable us to identify sites where high frequency energy inducing strong ground-motion might be expected along the trace.

Learn more about CORRELATION OF SITE CONDITION - BUILDINGS DAMAGES – AND GROUND RUPTURE OF THE 27 MAY 2006 YOGYAKARTA EARTHQUAKE – CENTER JAVA, you can download here

New Attenuation Relation for Earthquake Ground Motions in Indonesia Considering Deep Source Events

by Rizkita Parithusta
(Department of Earth and Planetary Sciences Institute of Seismology and Volcanology — Kyushu University, and Indonesia Center for Earthquake Engineering)
Seminar dan Pameran HAKI 2007 - “KONSTRUKSI TAHAN GEMPA DI INDONESIA”

Abstract
Attenuation relation of the peak horizontal ground accelerations for Indonesia region is developed. The database is compiled for earthquakes with moment magnitudes Mw ≥ 5 that occurs during 1971 – 2007, which consists of horizontal peak ground accelerations and their 5 percent damped response spectra; the accelerograms are recorded on different site conditions classified as rock, hard and soft soils. Earthquake hypocenters with depths up to 150 km are used to attune the equation relevant to subduction, which are the most common earthquake events in Indonesia. The effects of the local site conditions and depth on the attenuation relation are considered simultaneously with the distance and magnitude using a two-stage regression procedure to separate the distance dependence from that of the magnitude.

An iterative partial regression algorithm is proposed to overcome the singularity of the resulting normal equations. It can be observed that the peak ground motions increase with depth for the same magnitude and distance. Considering the soil conditions, it is noticeable that the station coefficients correspond to the soil-type classification varies widely. For the peak ground accelerations, the station coefficients are closely related to the general soil-type classification; while the peak ground velocity have strong relationship with the soil-type classification.

Learn more about Seismic Chart In Performance-Based Earthquake Engineering, you can download here

Seismic Chart In Performance-Based Earthquake Engineering

by Sindur P. Mangkoesoebroto
(Indonesia Center for Earthquake Engineering and Institute of Technology Bandung, http://www.icfee.info, e-mail itbpauir@bdg.centrin.net.id.)
Seminar dan Pameran HAKI 2007 - “KONSTRUKSI TAHAN GEMPA DI INDONESIA”

Abtract
A seismic chart as design aid for simple structures is proposed. It is suitable to be used in the environment of the Performance-Based Earthquake Engineering together with the Non-linear Static Procedure (NSP) or pushover analysis. The chart utilizes the inelastic response spectra of 10% kinematic hardening SDOF system. The performance parameters to include strength, hysteretic energy and damage, as function of numbers of independent variables such as the intensity & duration of the input motions, site characteristic, ductility, with constraint on displacement, are discussed. The random variables involved and their uncertainties can be taken into account explicitly, enabling simple incorporation of the information on the Seismic Hazard Analysis, when available. Comparison with the experimental data confirms the prediction.

Learn more about Seismic Chart In Performance-Based Earthquake Engineering, you can download here

West Sumatra Earthquake, 6 March 2007, Structural Damage Report

by Teddy Boen
(Senior Advisor WSSI (World Seismic Safety Initiative)
Seminar dan Pameran HAKI 2007 - “KONSTRUKSI TAHAN GEMPA DI INDONESIA”

INTRODUCTION
On Thursday, March 6, 2007 at 10:49 AM, Singkarak Lake and its surrounding areas were shaken by a moderate earthquake while most people were working and children were studying at schools. According to USGS (United States Geological Survey), the epicenter of this earthquake is at 0.536°S, 100.498°E with 30 km depth and the magnitude was 6.3 Mw. The epicenter is 49 km from Padang, and 159 km from Pekanbaru.

The damaged places visited are Solok District, Tanah Datar District, and Agam District. The damage at those districts was scattered. The most damaged area in Solok is at Sumani Village (Singkarak Sub-District); in Tanah Datar is at Batipuh Village (Rambatan Sub-District) and Padang Panjang; in Agam is at Sungai Tanang Village (Banuhampu Sub-District) and Bukit Tinggi. There were no places / villages which were heavily damaged. The earthquake impact was not as big as exposed by newspapers and electronic media. The number of wounded casualties were also not as many as was the case during the Yogyakarta May 27, 2006 earthquake. The health care facilities in Solok did not experience an influx of wounded casualties. There was no mass emergency situation at all. The hastily built tents outside the hospital were not utilized.

Buildings that were damaged or collapsed during the March 6, 2007 West Sumatra earthquake were mostly masonry non engineered constructions, consisting of one or two stories houses, shop houses, religious and school buildings. The damaged buildings are scattered. The main cause of the damage buildings are poor quality of construction materials and poor workmanship.

Learn more about West Sumatra Earthquake, 6 March 2007, Structural Damage Report, you can download here

Bridge Engineering Construction and Maintenance

The Bridge Engineering Handbook is a unique, comprehensive, and the state-of-the-art reference work and resource book covering the major areas of bridge engineering with the theme “ ridge to the Twenty-First Century.” It has been written with practicing bridge and structural engineers in mind. The ideal reader will be an M.S.-level structural and bridge engineer with a need for a single reference source to keep abreast of new development and the state-of-the-practice, as well as review standard practices.

The areas of bridge engineering include planning, analysis and design, construction, maintenance and rehabilitation. To provide engineers a well organized and user-friendly, easy to follow resource, the handbook is divided and printed into four Volumes: I Superstructure Design, II Substructure Design, III Seismic Design, and IV Construction and Maintenance.

Volume IV Construction and Maintenance contains constructions of steel and concrete bridges, substructures of major overwater bridges, construction inspections, construction control for cable-stayed bridges, maintenance inspection and rating, strengthening and rehabilitation.

The handbook stresses professional applications and practical solutions. Emphasis has been placed on ready-to-use materials. It contains many formulas and tables that give immediate answers to questions arising from practical works. It describes the basic concepts and assumptions omitting the derivations of formulas and theories. It covers traditional and new, innovative practices. An overview of the structure, organization, and content of the book can be seen by examining the table of contents presented at the beginning of the volume while an in-depth view of a particular subject can be seen by examining the individual table of contents preceding each chapter. References at the end of each chapter can be consulted for more detailed studies.

The chapters have been written by many internationally known authors in different countries covering bridge engineering practices, and research and development in North America, Europe, and Pacific Rim countries. This handbook may provide a glimpse of rapid global economy trend in recent years toward international outsourcing of practice and competition of all dimensions of engineering. In general, the handbook is aimed at the needs of practicing engineers, but materials may be re-organized to accommodate several bridge courses at the undergraduate and graduate levels. The book may also be used as a survey of the practice of bridge engineering around the world.

Learn more about Bridge Engineering Construction and Maintenance, you can download here

AASHTO Standard Specifications For Highway Bridge 16th

The structural design standards used by state bridge engineers, engineering colleges and universities, and practicing engineers worldwide. Customary U.S. Units. Loose-leaf with three ring binder. Replaces the 15th Edition and Interim Specifications-Bridges-1993, 9400 and 1995.

Major changes and revisions to this edition are as follows :

1. The Interim Specification of 1993, 1994, 1995, and 1996 have been adopted and are included.
2. Entire Division I-A, Seismic Design was revised.
3. Section 17, Soil-Reinforced Concrete Structure Interaction System, of Division I was revised.
4. Section 26, Metal Culverts, of Division II was revised
5. Section 27, Concrete Culvert, of Division II was revised
6. Section 29, Embedment Anchors, was added to Division II.


Learn more about AASHTO Standard Specifications For Highway Bridge 16th, you can download here

Bridge Engineering Construction and Maintenance

This chapter addresses some of the principles and practices applicable to the construction of mediumand long-span steel bridges — structures of such size and complexity that construction engineering becomes an important or even the governing factor in the successful fabrication and erection of the superstructure steelwork.

We begin with an explanation of the fundamental nature of construction engineering, then go on to explain some of the challenges and obstacles involved. The basic considerations of cambering are explained. Two general approaches to the fabrication and erection of bridge steelwork are described, with examples from experience with arch bridges, suspension bridges, and cable-stayed bridges.

The problem of erection-strength adequacy of trusswork under erection is considered, and a method of appraisal offered that is believed to be superior to the standard working-stress procedure. Typical problems with respect to construction procedure drawings, specifications, and practices are reviewed, and methods for improvement suggested. The need for comprehensive bridge erection-engineering specifications, and for standard conditions for contracting, is set forth, and the design-andconstruct contracting procedure is described.

Finally, we take a view ahead, to the future prospects for effective construction engineering in the U.S. The chapter also contains a large number of illustrations showing a variety of erection methods for several types of major steel bridges.

Learn more about Bridge Engineering Construction and Maintenance, you can download here

DESIGN OF CONCRETE STRUCTURES

The thirteenth edition of Design of Concrete Structures has the same dual objectives as the previous work : first to establish a firm understanding of the behavior of structural concrete, then to develop proficiency in the methods used in current design practice. The text has been updated in accordance with the provision of the 2002 American Concrete Institute (ACI) Building Code.

Learn more about DESIGN OF CONCRETE STRUCTURES, you can download
part 1
part 2
part 3
part 4

SEISMIC DESIGN ASPECTS FOR PRECAST CONCRETE FRAMES

Strong – Connection Systems

Ideal location for critical section of a plastic hinges:

1. Beam – to – column connection: not less than a distance hb (beam depth) from the connection.

2. Column – to – beam connection: at anywhere within the beam length, between column faces.

3. Beam – to – beam connection: not less than a distance hb (beam depth) from the connection.

4. Column – to – column connection: at anywhere within the beam length, between column faces

5. Column – to – footing connection: not less than a distance hc (column width in the direction considered) from the connection.

Location for ductile connection:

1. In beams – at any location. But it is better to locate it as close as possible to the columns

2. At column bases – to complete mechanism

Requirements for Special Moment Frames with Strong Connections

• Shall satisfy all requirements for SRPMK

• Segments between locations where flexural yielding is intended to occur follow bernoulli princpl (min 4 times h)

• Design strength of the strong connection fSn shall be not less than Se

• Primary long rebars shall be made continuous across connections and shall be developed outside both the strong connection and the plastic hinge region.

• Column-to-column connections shall have design strength fSn not less than 1.4Se, the design flexural strength fMn not less than 0.4 times the maximum probable flexural strength Mpr for the column within the story height, and the design shear strength fVn of the connection shall be not less than that determined by Mpr .

SRPM with ductile connection constructed using precast concrete shall satisfy the following requirements and other requirement for SRPMK:

• The nominal shear strength for connections, Vn , shall be greater than or equal to 2Ve, and

• Mechanical splices of beam reinforcement shall be located not closer than h/2 from the joint face

Emulation Design

• Based on SNI Concrete code chapter 23.2.1.5:

1. The system will have strength and toughness equal to or exceeding those provided by a comparable monolithic reinforced concrete structure

• Procedures

1. Design the structure as if it is to be constructed by monolithic cast in place reinforced concrete methods.

2. Disassemble the structure “on paper” into appropriate sizes and shapes to meet the following criteria, i.e. suitable for plant fabrication, capable of being transported and can be erected by the available cranes.

3. Design the connection:

· connect rebars between the precast elements by mechanical splices, welding the rebars, or by grouting the conduit or sleeves with high-strength, non shrink grout

· connect the precast concrete elements using a high-strength, non shrink grout in the interfaces or by placing conventional concrete in the spaces between the precast elements.

Emulation Details

• Reinforcing steel splicing is accomplished in the same manner as in cast – in – place – concrete by:

1. Lapping

2. Welding

3. Joining with mechanical splices

• SNI Specification

1. Connect the reinforcing bars by mechanical splices, welding, grouting or sleeves with high-strength and non-shrink grout.

2. Both welded and mechanical splices must achieve strengths of at least 125 percent of rebar yield strength, fy.

3. For lapped splices refers to chapter 14 of SNI Concrete Code

4. The bar size determines the size of connection device

5. Staging of the erection should be considered in design

CONNECTION MADE BY GROUTING OF PRECAST CONCRETE COMPONENTS

• When cement-based grouts are used they should be high strength and non-shrink. The minimum grout compressive strength should be 10 MPa greater than that of the surrounding concrete.

• For all grouting situations, extreme thoroughness with respect to cleanliness and the following of manufacturer’s instructions is required.

• When bars are grouted in horizontal or inclined holes, bar locaters should be used to keep the bars in the center of the holes.

• Designers should communicate to contractors at tender stage all the specialized requirements for the grouting operations, including the need for experienced operators and a satisfactory quality assurance programme.

• The grout volume method should be used to determine whether or not the units have been fully grouted.

• Before compressed air is used to blow out dust from holes, it should be tested for oil contamination.

Preferable Behaviour of Precast System

• Behaviour of Precast System @ Behaviour of Monolithic System

• Structural Element Yield Under Bending Type of Failure

• Beam Yield First

• Slip And Shear Mechanisms Do Not Dominate the Behaviour

• Shows Stable Hysteretic Behaviour

Example of Strong Beam to Column Connection

Example of Strong Column to Column Connection

STRUCTURAL CONCRETE FORMWORK

This guide specification covers the requirements for formwork for cast-in-place concrete and will be used with Section 03 31 00.00 10 CAST-IN-PLACE STRUCTURAL CONCRETE. Formwork for architectural cast-in-place concrete is specified in Section 03 33 00 CAST-IN-PLACE ARCHITECTURAL CONCRETE.

Learn more about STRUCTURAL CONCRETE FORMWORK, you can download here

Formwork Code of Practice 2006

Formwork is the surface, supports and framing used to define the shape of concrete until the concrete is self-supporting: (see AS3610 Formwork for Concrete).

‘Formwork’ includes:
• the forms on which concrete is poured;
• the supports to withstand the loads imposed by the forms and concrete; and
• any bracing added to ensure stability.

Together these components make the formwork assembly.

Hazards associated with work involving the erection, alteration and/or dismantling of formwork include:
• formwork collapse (before, during and after placement of concrete);
• falls from heights;
• slips and trips;
• falling objects ;
• noise;
• dust; and
• manual tasks.

To properly manage risks, a person must
• identify hazards; and
• assess risks that may result because of the hazards; and
• decide on control measures to prevent, or minimise the level of, the risks; and
• implement control measures; and
• monitor and review the effectiveness of the measures.
Control measures must be implemented in an order of priority and implemented
before work commences. The following example illustrates the order of priority
where there is a risk a person could fall.

Learn more about Formwork Code of Practice 2006, you can download here

GUIDELINES ON FALSEWORK/FORMWORK

This guideline has been developed to provide information to engineers; contractors and others involved in the design, erection and use of false work and Formwork.

For specific regulatory requirements regarding false work and framework, please consult the Construction Safety Regulations, adopted under the Workplace Safety and Health Act.

Engineering Design Requirements
Contractors must determine if form work/false work that is to be used on a project requires design work by an engineer. The following types of concrete Formwork and false work require the provision at the job-site of design and erection drawings and necessary supplementary information signed and sealed by a professional engineer.
Some engineers may choose to design only the Support false work portion of a form work system or a specific portion of the whole project. This must be made clear to contractors and so specified in all relevant drawings and documents. Statements such as "THIS IS NOT A FORMWORK DRAWING REQUIRED BY W.S.H. MR 189/85 “ written in the large print of a drawing should prevent the possibility of any misunderstanding. False work and Formwork design drawings need not be submitted to the Branch for approval or retention, but must be available at the project site.
The design engineer must authorize any revisions or changes to a false work structure. The engineer should ensure that written authorization is immediately available at the job-site, to be followed by proper documentation as soon as practicable.

Codes and Standards
CSA Standard S269.1 "False work for Construction Purposes" deals only with the design and erection of false work and specifically excludes forms.
The practice of noting on the drawings: "FORMWORK IS THE RESPONSIBILITY OF CONTRACTORS," or "BLOCKING BY OTHERS," is not acceptable. Form work designers are expected to show details of forms and all associated connections, blocking, braces and ties that are necessary to ensure form work integrity during erection and concrete placement.
The CSA Standards 086, S16, S157 and A23 continue to provide the basis for Formwork compliance. ACI Sp4 and ACI Standard 347 are recommended as reference and guides for form work designers.
Where there are discrepancies between the regulations and the standards, the overriding or qualifying requirements of the regulations prevail.

Learn more about GUIDELINES ON FALSEWORK/FORMWORK, you can download here

AISC Construction Management of Steel Construction

This educational manual was developed for the American Institute of Steel Construction (AISC) to present the principal project management activities and issues for procuring and implementing steel construction. The manual was developed for use in undergraduate university level construction management programs. It should also be useful in project management courses in construction engineering, civil engineering, architectural engineering, and architecture programs.

The manual is intended as a supplemental text which may be incorporated into junior and senior
level project management, estimating, and scheduling courses. The manual was developed in two educational modules: Module One addresses project management activities and Module Two examines scheduling and estimating issues that pertain to steel construction. Both educational modules have been designed to help students understand the unique roles and relationships of the general contractor, steel fabricator, erector, specialty contractors, suppliers, architect, structural engineer, and owner in the construction of a structural steel building frame.

While the manual has been specifically developed to address steel construction, many of the issues presented are also applicable to the management of other construction subcontracts. Therefore, this manual may serve as a detailed case study of steel construction which will help students achieve a broader understanding of construction project management, estimating, and scheduling practices. It is hoped that faculty teaching this material, will find this steel case study useful as they present the principles of project management, estimating, and scheduling in their courses. Most construction management and construction related programs require students to take courses in construction science, technology, materials, and structural design. It is assumed that by the time students are enrolled in project management, estimating, and scheduling courses, they will have obtained sufficient understanding of the technical terminology and also have a general understanding of steel design and construction practices. This manual is not intended as a technical guide to steel, but focuses instead on the project management aspects of steel construction. Students may wish to consult other general texts on structural design and construction methods should they need additional technical information. AISC has developed numerous publications which address the technical and design aspects of steel. These publications may be obtained by contacting the AISC publication’s department.

Learn more about AISC Construction Management of Steel Construction, you can download here

PRECAST CONCRETE WALL PANELS MATERIAL

Precast concrete panels are fabricated and erected using the same basic materials as for all concrete construction: Portland cement, fine and corse aggregates, admixtures, inserts, insulating materials, and specialty coatings to enhance esthetic appearance. Architectural precast panels are often made of two types of concrete because of the cost of decorative aggregates and white cement. A backup, or structural, concrete is used for most of the panel thickness, and the concrete for the exposed face of the panel thickness, and the concrete for the exposed face of the panel is selected for its architectural appearance.

FACADE FORMWORK

FACADE STOCK IN WAREHOUSE

FACADE STOCK IN WAREHOUSE

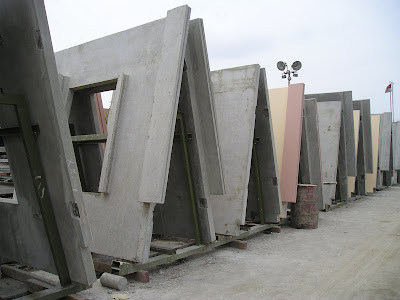

FACADE STOCK AT STOCK YARD

FACADE STOCK AT STOCK YARD

FACADE ON TRUCK

FACADE ON TRUCK

FACADE ON TRUCK

INSTALLATION FACADEINSTALLATION FACADE
INSTALLATION FACADE
INSTALLATION FACADE
INSTALLATION FACADE
INSTALLATION FACADE
INSTALLATION FACADE
INSTALLATION FACADE
INSTALLATION FACADE
INSTALLATION FACADE
